Lighting Display

Background

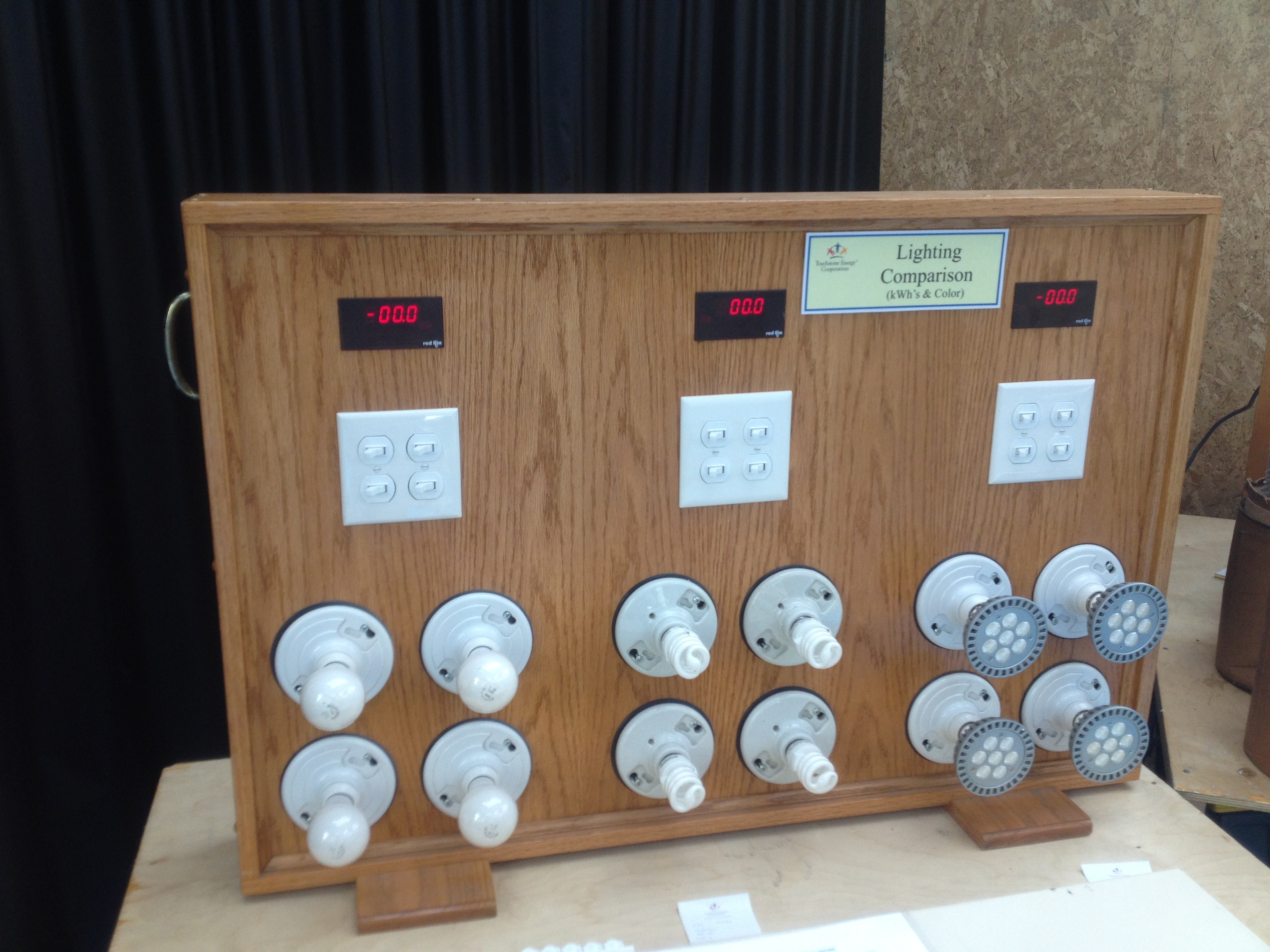

While I was at TechAdvantage, I saw the light bulb display that Touchstone Energy was showing at their booth.

Solution

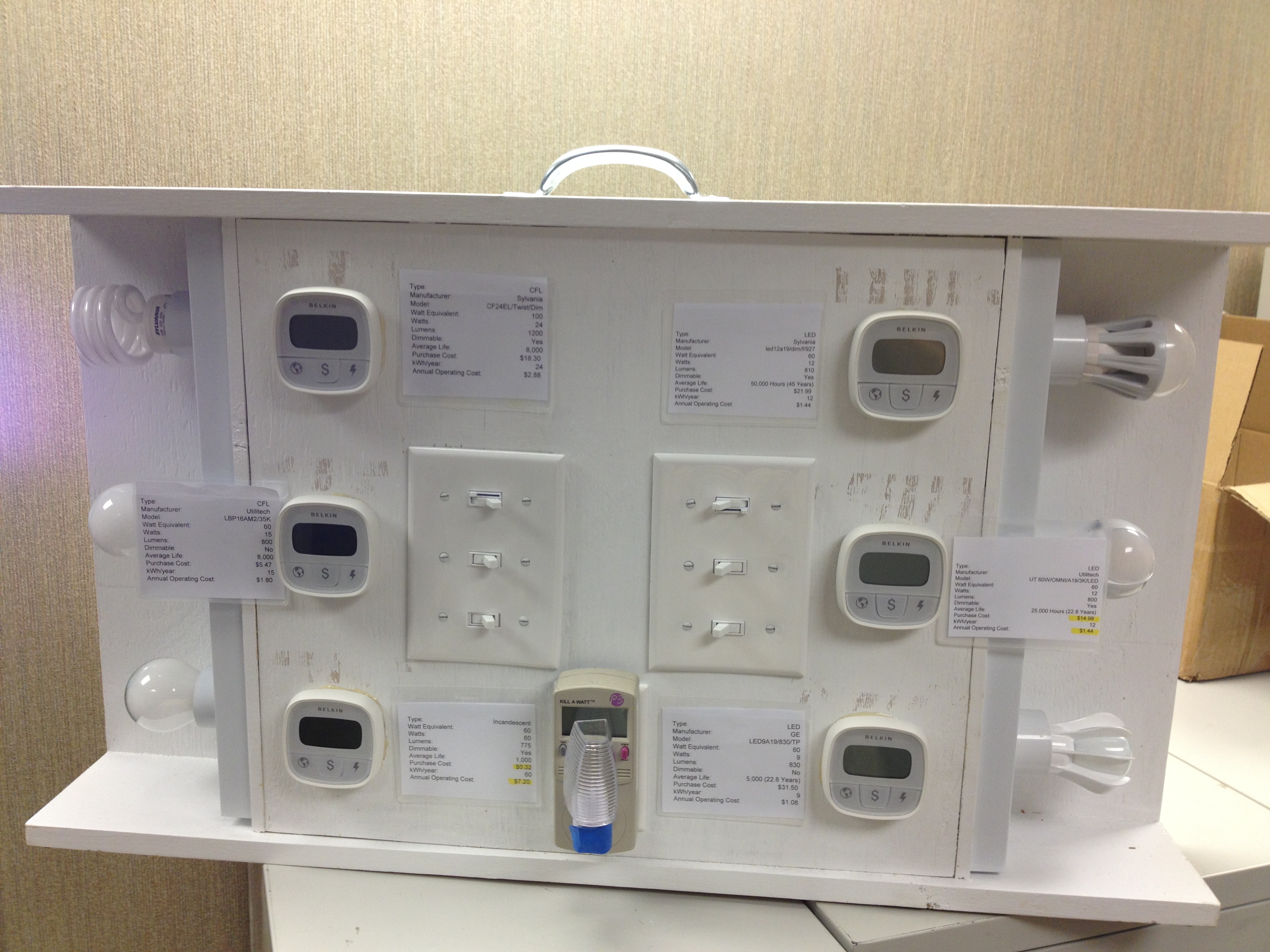

I liked the idea, and wanted to make one for our Annual Meeting. One thing that concerned me about the Touchstone Energy Display, was that all the bulbs had to be removed to transport it. I wanted something more "pick-up-and-go." Here is what I came up with:

Bulbs

Here are the bulbs I selected. I tried to stay right around the 800 Lumens range. These figures are based on 3 hours/day, 365 days per year, at a rate of $ 0.12/kWh.

TypeManufacturerModelWatt EquivalencyWattsLumensAverage LifeCostkWh/YearAnnual Operating Cost
IncandescentUtiltechN/A60607751,000$.3260$ 7.20
CFLUtiltechLBP16AM2/35K60158008,000$ 5.4715$ 1.80
CFLSylvaniaCF24EL/Twist/Dim1002412008,000$ 18.3024$ 2.88
LEDGELED9A19/830/TP60983025,000
22.8 Years
$ 31.509$ 1.08
LEDSylvaniaLED12A19/Dim/f/927601281050,000
45 Years
$ 21.9912$ 1.44
LEDSylvaniaLED8A19/Dim/f/83060883035,000
31 Years
$ 32.298$ .96
LEDUtilitechUT60w/omni/a19/3k/led601280025,000
22.8 Years
$ 14.9812$ 1.44
